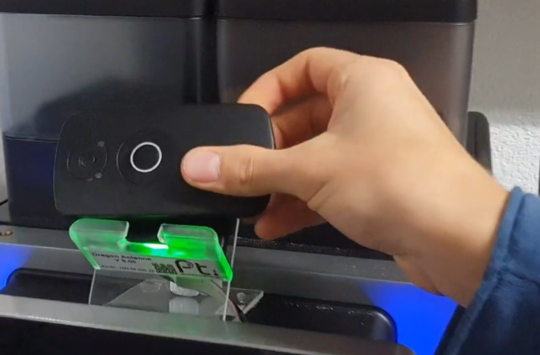

The NFC Mobile expands the possibilities for reading data from unnetworked vending machines at the touch of a button. All RFID readers of the DIVA2 family can be easily read from outside the vending machine via the RFID antenna.
By holding the device in front of the reader antenna, data transmission starts in both directions. This includes EVADTS or transaction data, prices, etc.
By plugging the device into USB of your PC, the data is automatically imported into your accounting software or stored as files on your computer without manual intervention.
The desired configuration of the device, i.e. what is to be transferred in the specific case, is conveniently carried out via the Hug-Witschi cloud solution.
All DIVA2 products already have an internal IrDA interface. This is located next to the connection cable for the vending machine interface. If the device is mounted inside the vending machine, the accessibility of this IrDA interface may be limited.

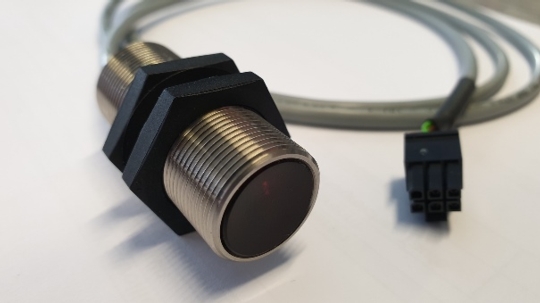

This problem is solved by the new product IR Eye. The remote head with IR sensor can be mounted anywhere inside or outside the vending machine. The mounting is very easy thanks to a 12mm thread.
The IR Eye can be retrofitted to all DIVA2 systems.
All DIVA2 systems have excellent connectivity. All devices (except Ultralight) have a LAN port as standard, which can be used for wifi or power LAN networks in addition to the familiar Ethernet networking.
The LeX 4G readers also have a built-in GSM (LTE) modem. For DeLight, DIVA2 Base and MaX, the modem can be retrofitted.
Networking allows you to optimize your business in a number of ways:
Increase sales through mobile payment (TWINT)
seamless controlling through automatic receipt of EVADTS sales data or real-time transaction data
reduction of maintenance effort by remote SW updates, remote adjustment of configuration and prices
Reduction of downtime through processing of error messages
